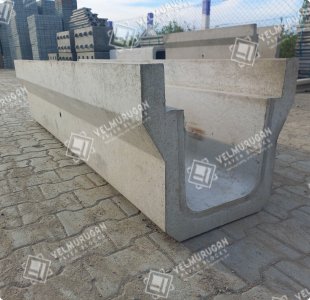

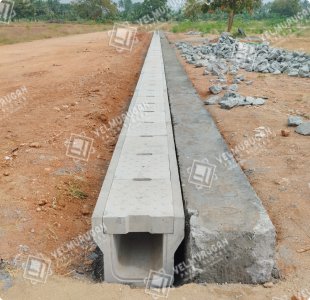

U Drain

Velmurugan Paver Blocks Manufacturing and marketing Unit of U-Drain (box culvert) in the industry. The main purpose of the U Drain is to discharge the collected stormwater to the designated point. Our manufacturing facility has allowed us to engineer the culver with a compact design accompanying the required technical properties and structural detailing. We practice Precast manufacturing techniques of the highest standard. We prefer the highest grade of raw materials that include the recommended grades of cement, steel, and other construction materials. Vigorous quality testing is practiced at every stage of production to ensure the Precast Drain Culvert is defect-free.

Our products are suitable for installation in different soil conditions. The structural detailing of the U-Drain has made it withstand soil pressure and external loads when applied. The slope angle and other details are integrated to ensure the quicker draining of the storm and sewage water. The Precast U-Drain we manufacture is a cost-saving choice as it limits the requirements of soil excavation and other operational costs involved. We engineer Precast Box Culverts in various dimensions to satisfy our customers’ requirements.

Dimensions of U Shape Drain (mm)

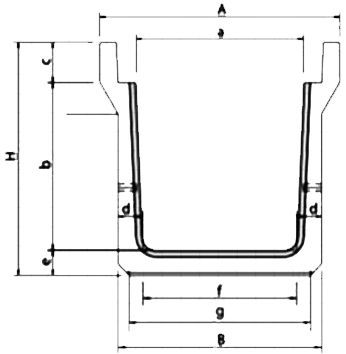

Section

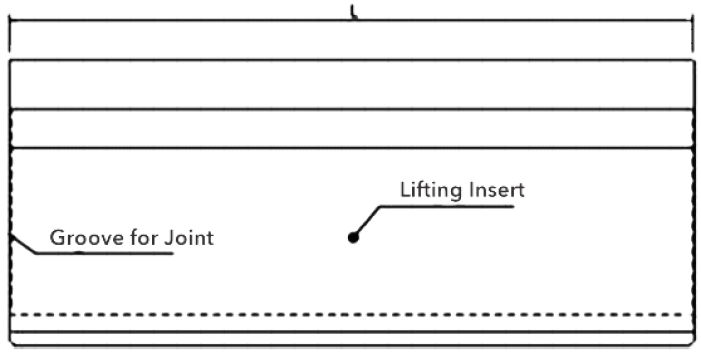

Side View

Size (mm) a x b L A B H a b c d e f g Approx Weight (Kg.)
300 X 300
2000
540
420
480
300
300
110
70
70
280
340
435
450 X 450
2000
700
590
660
450
450
130
80
80
430
510
657
600 X 600
2000
860
730
835
600
600
145
90
90
550
650
890
750 X 750
2000
1050
890
1000
750
750
150
100
100
690
810
1200
900 X 900
2000
1200
1070
1170
900
900
160
120
120
830
990
1646

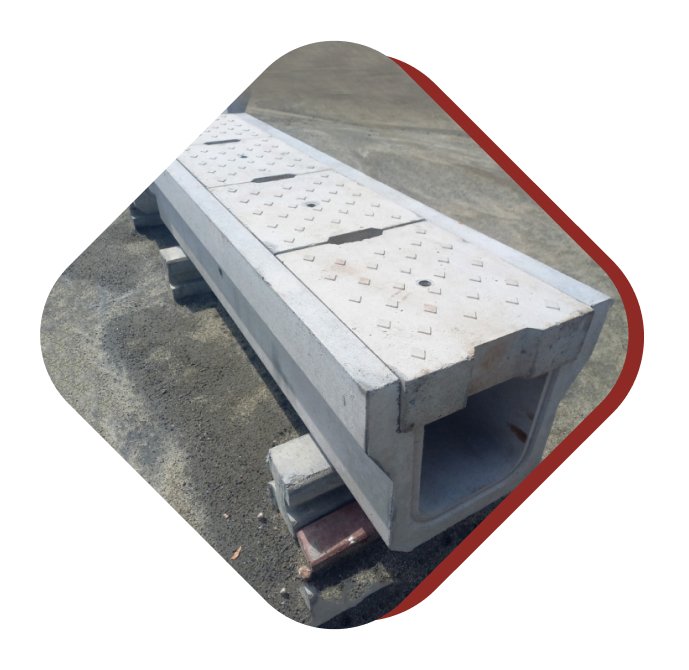

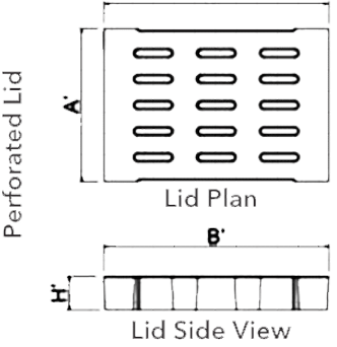

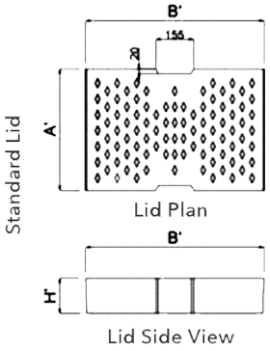

Dimensions of Lid (mm)

Size (mm) a x b A B H Approx Weight (Kg.)
300 X 300
500
410
110
53
450 X 450
500
572
130
87
600 X 600
500
732
145
125
750 X 750
500
902
150
158
900 X 900
500
1052
150
187
